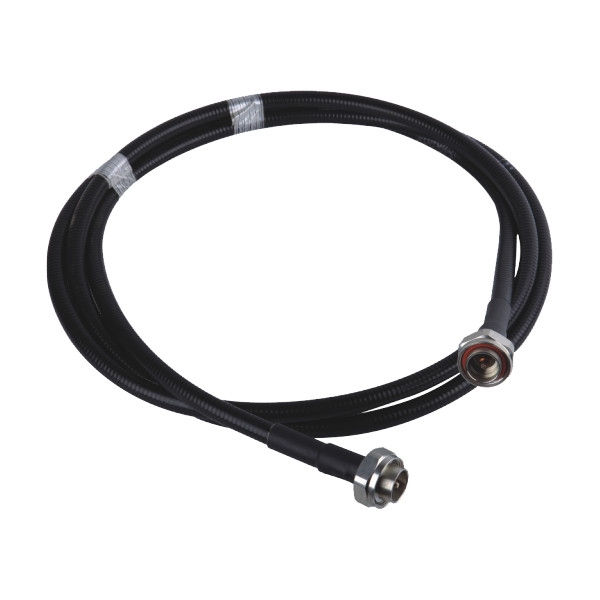

DIN (M) to DIN (M) 1/4" Super Flex Jumper

DIN (M) to DIN (M) 1/2" Super Flex Jumper

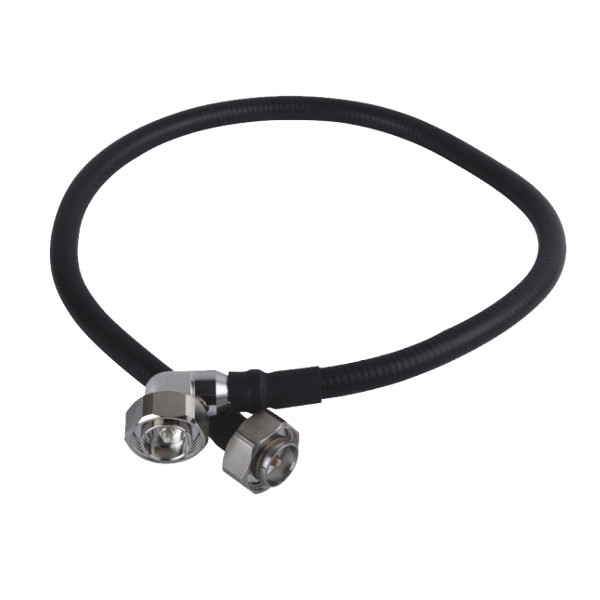

DIN (M) Right Angle to DIN (M) 1/2" Flex Jumper

Oasis Projects manufactures jumpers with different cable and connectors combinations used exclusively in telecom as BTS an IBS accessories. Highly sophisticated induction machine is used in soldering technology ensuring superior electrical characteristics.

ELECTRICAL SPECIFICATIONS:
Frequency Range	DC to 2.7 GHz
Characteristic Impedance	50 Ω
VSWR	1.8 (Typically), 2.0 (Max)
Return Loss	-1 GHz : > 26dB p to 2.2 GHz : > up to 2.7 GHz : > 20.8 dB
PIM3 (Passive third order Inter-modulation)	< -160dBc with 2×43 dBm Carriers
Attenuation for Cable Per Meter ( Max at 20ÌŠ C)
800 MHz	0.11
900 MHz	0.12
1800 MHz	0.17
2200 MHz	0.19
2700 MHz	0.22
Insertion loss for a connector	0.05 dB √ (Freq in GHz) (Approx)
Insulation Resistance	>10000 MΩ
Contact Resistance of the connector	<0.4mΩ for the centre contact / <1.5mΩ for the outer contact

MECHANICAL SPECIFICATIONS:
Reliability of Contact	Minimum 500 mating
Cable Retention Force	Maximum 250 N
(Before degrading Electrical Specification)
Coupling Nut Torque	Minimum 40-60 N mtrs (Manual)
Bending Radius (Repeated Bending)	Minimum 32mm
Bending Radius (Single Bending)	Minimum 25mm

ENVIRONMENT DATA:
Operating Temperature Range	-10ÌŠC to +55ÌŠC
Storage Temperature Range	-20ÌŠC to +60ÌŠC

MATERIAL AND FINISH – CONNECTOR:
Body	Brass (ASTM B 16) / Tri Alloy
Insulator	PTFE (ASTM D1457, Type 1, Grade 1)
Inner Contact	Phosphor Bronze
Gaskets	Silicon Rubber
Other Metal Parts	Brass (ASTM B 16) / Tri Alloy

MATERIAL AND FINISH – CABLE:
Inner Conductor	Copper Clad Aluminum
Dielectric	Foamed Polyethylene
Outer Conductor	Corrugated Copper Tubing with Black Polythylene Jacket

Note: Any dimension could be changed without prior information under the organization’s continual improvement policy. Jumper with other combination of connectors are also available.
