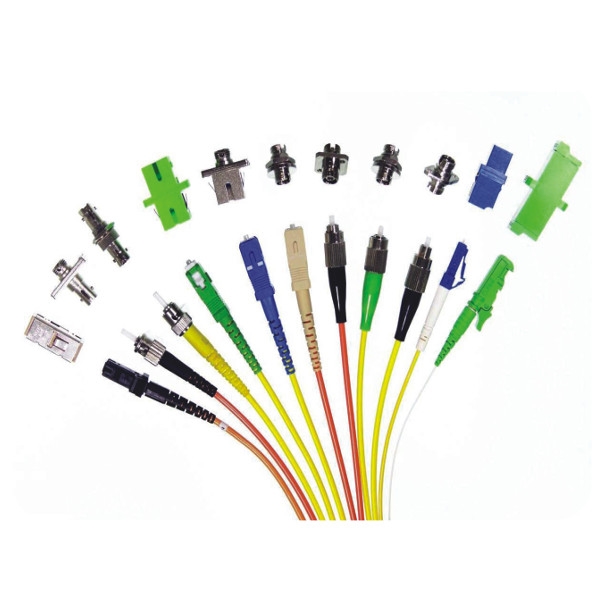

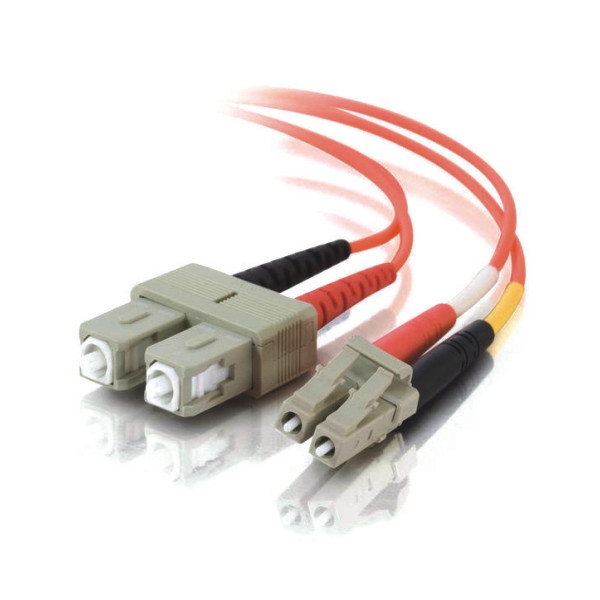

They comprise two tight buffer fibres housed within a common outer jacket in OM1, OM2, OM3, OM4, OS1, OS2 multi-mode and single mode variants. Both ends are terminated with a high performance hybrid or single type connector comprising of a SC, ST, FC, LC, MTRJ, E2000 connector in simplex and duplex. These are typically not ruggedized depending on the application and a spring loaded electrical contact housed within LSHF plastic shell possible, making them suitable for internal use. 100% factory transmission tested per ANSI/TIA-568-C.3. Slim-profile boots with durable flexible cable strain relief. Available in 0.9mm, 1.6mm, 2.0mm, 3.0mm sizes.
|
ELECTRICAL SPECIFICATIONS: |
||||
|
Range of Mode: |
Single or Multimode |
|||
|
Cable Type: |
Simplex or Duplex Zipcord |
|||
|
Connector Style: |
SC, ST, FC, LC, MTRJ, E2000 |
|||
|
Polish or Ferrule Interface Type: |
PC, UPC, APC |
|||
|
Cable Diameter: |
0.9mm, 1.6mm, 2.0mm, 3.0mm |
|||
|
Lengths: |
Standard & Custom Lengths |
|||
|
Outer Jacket: |
PVC or LSZH |
|||
|
Cable Assembly Length: |
(<15 meter Tolerance) -0/+100mm/ (>15 meter Tolerance) -0/+10% |
|||
|
Jacket Colour: |
Multimode: OM1 & OM2- Orange / OM3 & OM4 – Aqua |
|||
|
Jacket Colour: |
Single Mode: OS1 & OS2 – Yellow |
|||
|
Durability: |
500 cycles(0.2 dB max Increase), 1000mate/demate cycles |
|||
|
Operating Temp.: |
-20ÌŠC to +70ÌŠC/+85ÌŠC (armoured) |
|||
|
Strength of Coupling Mechanism |
(FOTP-185) 33 N at 0ÌŠ for 5 sec |
|||
|
Cable Retention |
(FOTP-6) 50 N at 0ÌŠ for 5 sec |
|||
|
Twist (FOTP-36)P |
15 N at 0ÌŠ 5 turns, 10 cycles |
|||
|
Flex (FOTP-1) |
0.5 Kg at 25cm, +90ÌŠ to -90ÌŠ, 100 cycles |
|||
