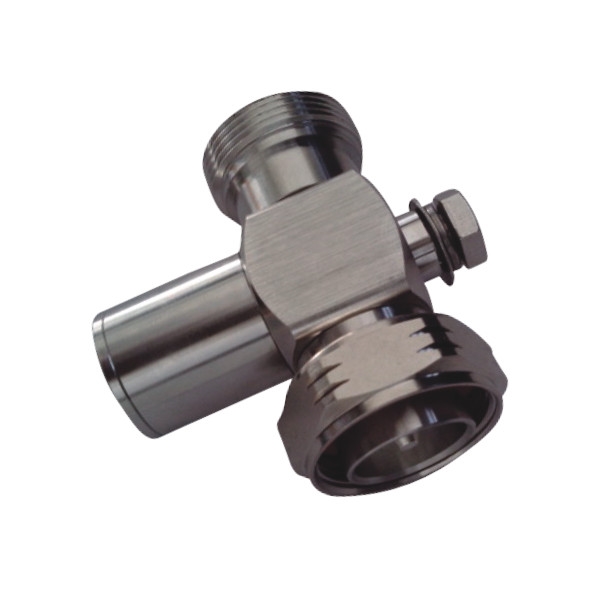

Oasis Projects offers a highly reliable quarter wave co-axial Lighting arrestor with DIN (M) to DIN (F) interfaces. Very low PIM3 is maintain to keep pace with the present requirement.
|
ELECTRICAL SPECIFICATIONS: |
||||
|
Operating Frequency Band |
800 – 2500 MHz |
|||
|
3rd Order IMD |
-140 dBc @ 43 dBm (Two tone) |
|||
|
Average Power |
3000.0 W @ 900 MHz |
|||
|
Connector Impedance |
50 ohm |
|||
|
Lighting Surge Capability |
100 times @ 20 kA |
|||
|
Lighting Surge Capability Test Method |
IEEE C62.421991 |
|||
|
Lighting Surge Capability Waveform |
8/20 waveform |
|||
|
Lighting Surge Current (Typical Repetitive) |
30 kA |
|||
|
Lighting Surge Current Waveform |
8/20 waveform |
|||
|
Peak Power, Maximum |
40.00 kW |
|||
|
Insertion Loss, Typical |
0.07 dB |
|||
|
FREQUENCY BAND |
VSWR |
RETURN LOSS |
|
820-960 MHz |
1.13 |
26.40 |
|
1710-2500 MHz |
1.15 |
24.20 |
