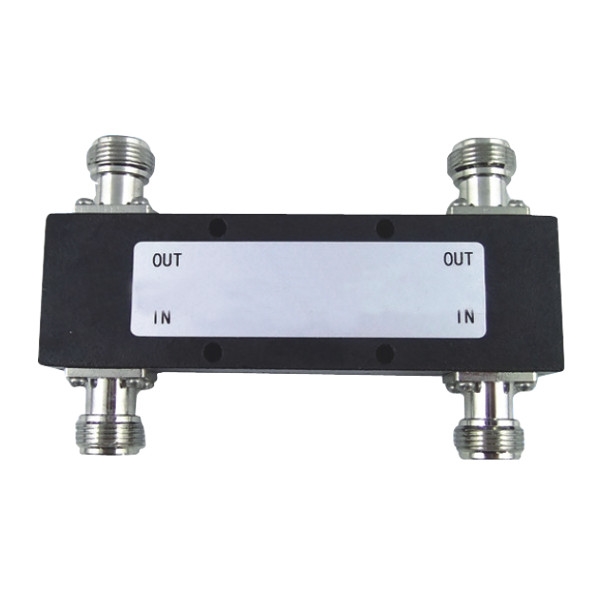

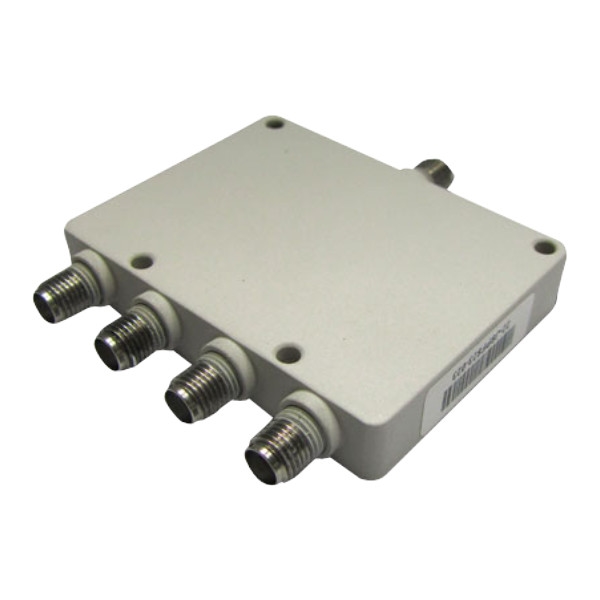

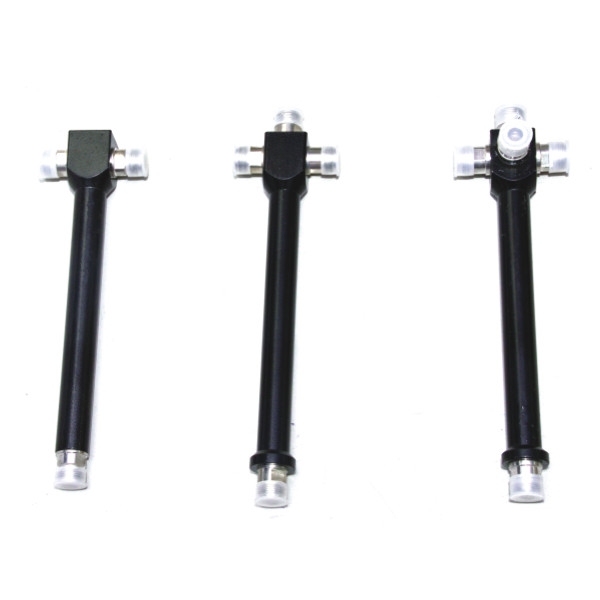

Power Combiner

SPECIFICATIONS:

2:1 Power Combiner

3:1 Power Combiner

4:1 Power Combiner

2:2 Power Combiner

Operating Frequency Band

700-2700 MHz

700-2700 MHz

700-2700 MHz

700-2700 MHz

3rd Order IMD

-140dBc

-140dBc

-140dBc

-140dBc

3rd Order IMD Test Method Carriers

Two +43 dBm

Two +43 dBm

Two +43 dBm

Two +43 dBm

Average Power, Maximum

150 W

150 W

150 W

150 W

Coupling

3.0 dB

4.8 dB

6.0 dB

3.0 dB

Coupling Tolerance

+ 0.5 dB

+ 0.5 dB

+ 0.5 dB

+ 0.5 dB

Impedance

50 ohm

Insertion Loss at @ 700-2700 MHz Frequency Band

< 0.2 dB

< 0.2 dB

< 0.2 dB

< 0.2 dB

Isolation at Frequency Band

> 23 dB @ 700-2700 MHz

Return Loss

> 20.8 dB

> 20.8 dB

> 20.8 dB

> 20.8 dB

VSWR

< 1.2

< 1.2

< 1.2

< 1.2
